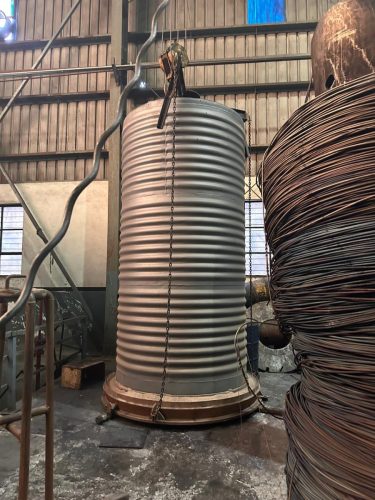

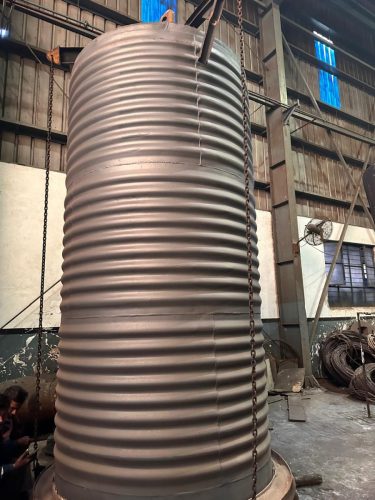

Continental Furnaces’ Bell Type Annealing Furnace provides superior batch annealing capabilities for wire coils, strip coils, and sheet metal stacks. This furnace design features a movable bell cover that ensures uniform heating and controlled cooling for consistent metallurgical results.
Key Features
-
Bell Cover Design: Movable heated cover for flexible batch processing
-
Inner Cover Protection: Optional protective atmosphere for bright annealing
-
Base Platform: Fixed hearth with multiple charging positions
-
Controlled Cooling: Programmable cooling rates for desired properties
-
Multiple Bell Configuration: Parallel processing for increased throughput
-
Energy Recovery Systems: Recuperators for improved efficiency
Technical Specifications
-
Design Type: Movable bell with fixed base configuration
-
Heating Method: Gas-fired or electric heating in bell cover
-
Temperature Range: 500°C to 900°C
-
Coil Weight Capacity: 500 kg to 30+ tons per charge
-
Atmosphere Options: Air, protective gas, or hydrogen atmosphere
-
Cooling Method: Natural cooling, fan-assisted, or water-cooled
-
Control System: Multi-zone temperature control with programmable profiles
Advantages
-
Batch Flexibility: Process multiple charges simultaneously
-
Uniform Annealing: Excellent temperature distribution throughout coil stack
-
Bright Annealing Capability: Protective atmosphere prevents oxidation
-
High Throughput: Multiple bells enable continuous production
-
Energy Efficient: Heat recovery systems reduce fuel consumption
-
Low Maintenance: Simple mechanical design with fewer components
Applications
-
Wire Coil Annealing: Steel, copper, aluminum, and alloy wires
-
Strip Coil Processing: Cold-rolled steel strip annealing
-
Sheet Metal Stacks: Batch processing of sheet materials
-
Spring Wire Treatment: Stress relief and property adjustment
-
Electrical Steel Annealing: Transformer core materials
-
Stainless Steel Processing: Bright annealing applications
Process Types
-
Black Annealing: Standard air atmosphere processing
-
Bright Annealing: Protective atmosphere for oxide-free finish
-
Batch Annealing: Multiple coils processed together
-
Close Annealing: Tightly stacked coil processing
-
Open Coil Annealing: Spaced coil configuration
Industries Served
-
Wire manufacturing (ferrous and non-ferrous)
-
Cold rolling mills
-
Steel service centers
-
Transformer manufacturing
-
Spring manufacturing
-
Cable and conductor production
-
Metal stamping and forming
System Components
-
Heating Bell: Insulated cover with heating elements/burners
-
Inner Cover: Protective atmosphere containment
-
Base Platform: Refractory-lined charging base
-
Cooling Bell: Optional water-cooled cover for rapid cooling
-
Material Handling: Bell lifting and transfer systems
-
Control System: Temperature and atmosphere monitoring
Fuel and Atmosphere Options
-
Fuel Types: Natural gas, LPG, electricity
-
Atmosphere Gases: Nitrogen, hydrogen, endothermic gas, exothermic gas
-
Cooling Methods: Natural convection, forced air, water jacket
Typical Cycle Parameters
-
Heating Rate: 50-100°C per hour (adjustable)
-
Soaking Time: 4-24 hours depending on material and coil size
-
Cooling Rate: Controlled based on desired material properties
-
Total Cycle Time: 24-72 hours typical
Advantages Over Continuous Annealing
-
Lower capital investment
-
Greater flexibility for varied products
-
Better suited for heavy gauge materials
-
Superior control of mechanical properties
-
Ideal for batch production environments
Safety and Environmental Features
-
Atmosphere monitoring and control
-
Gas leak detection systems
-
Emergency cooling provisions
-
Emission control compatibility
-
Safe bell handling mechanisms
-
Operator protection systems
Customization Options
-
Single or multiple bell configurations
-
Bell capacity and dimensions
-
Atmosphere control sophistication
-
Automation level (manual, semi-auto, fully automatic)
-
Cooling system design
-
Integration with existing production lines
Why Choose Continental Furnaces?
With decades of experience in heat treatment equipment, Continental Furnaces delivers bell type annealing furnaces designed for optimal efficiency, product quality, and operational reliability. Our ISO-certified manufacturing ensures international quality standards.
