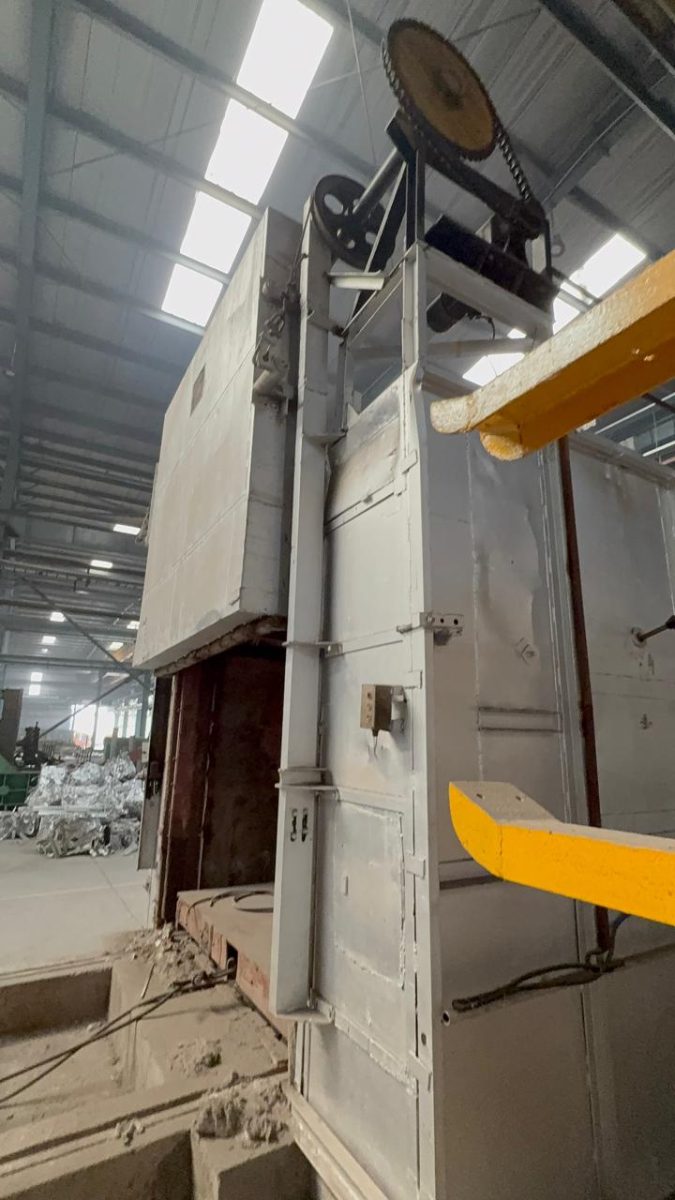

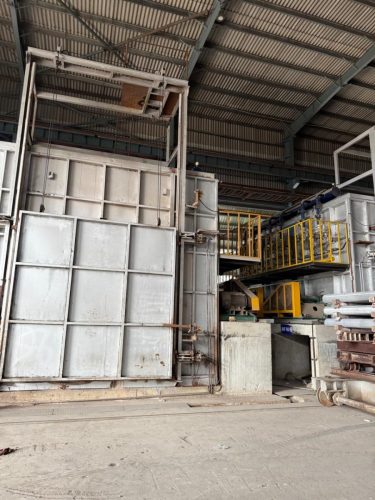

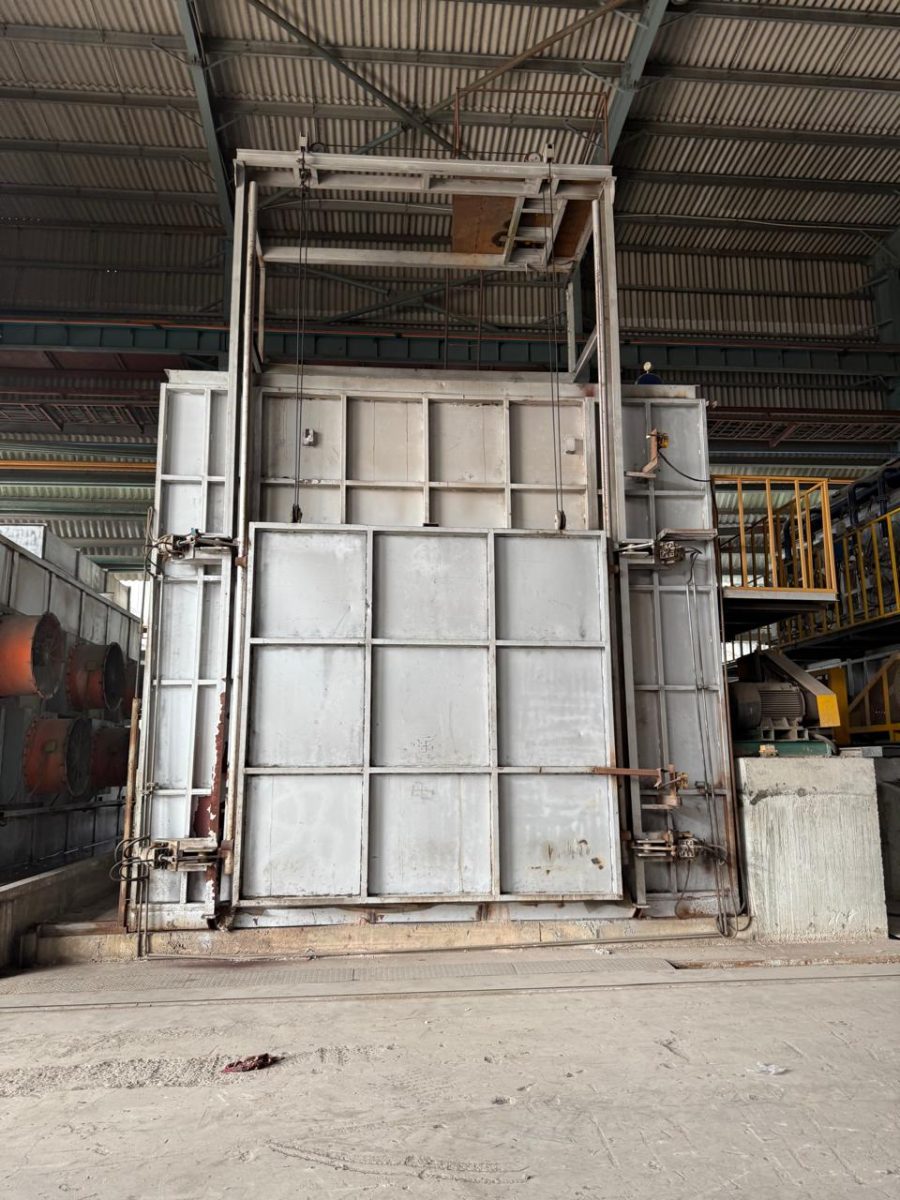

The Bogie Hearth Furnace from Continental Furnaces is designed for heat treatment of large, heavy components that require convenient loading and unloading. The mobile bogie platform enables easy handling of oversized parts while maintaining excellent temperature uniformity throughout the heating chamber.
Key Features
-
Mobile Bogie Platform: Rail-mounted hearth for easy loading/unloading
-
Heavy Load Capacity: Designed for components up to several tons
-
Large Chamber Volume: Accommodates oversized parts and batch processing
-
Excellent Insulation: High-efficiency refractory materials minimize heat loss
-
Multi-Zone Heating: Ensures uniform temperature distribution
-
Hydraulic Door Operation: Safe and convenient furnace access
Technical Specifications
-
Design Type: Bogie hearth with rail-mounted platform
-
Heating Method: Gas burners, oil burners, or electric elements
-
Temperature Range: 600°C to 1200°C
-
Load Capacity: 500 kg to 50+ tons
-
Chamber Dimensions: Customizable based on component size
-
Fuel Options: Natural gas, LPG, furnace oil, electricity
-
Control System: PLC with HMI touchscreen interface
-
Door Operation: Hydraulic or pneumatic lifting
Advantages
-
Easy Loading: Bogie rolls out for convenient component placement
-
Versatile Applications: Suitable for various heat treatment processes
-
Uniform Heating: Multiple burner zones ensure consistent temperature
-
Reduced Handling Time: Quick loading/unloading improves productivity
-
Safe Operation: Hydraulic doors eliminate manual lifting
-
Energy Efficient: Well-insulated construction reduces fuel consumption
Applications
-
Large casting heat treatment
-
Heavy forging processing
-
Structural component stress relieving
-
Large gear and shaft hardening
-
Pressure vessel post-weld heat treatment
-
Aerospace component processing
-
Heavy machinery part heat treatment
Process Capabilities
-
Annealing: Stress relief and softening
-
Normalizing: Microstructure refinement
-
Hardening: Surface and through-hardening
-
Tempering: Hardness adjustment
-
Stress Relieving: Post-welding or machining stress removal
-
Preheating: Prior to welding or forming operations
Industries Served
-
Heavy engineering and machinery
-
Aerospace and defense
-
Automotive component manufacturing
-
Oil and gas equipment
-
Railway component manufacturing
-
Construction equipment
-
Power generation equipment
Design Variants
-
Standard Bogie Hearth Furnace: For general heat treatment applications
-
Controlled Atmosphere Bogie Furnace: Protective atmosphere capability
-
Car Bottom Furnace: Alternative term for bogie hearth design
-
Sealed Quench Bogie Furnace: Integrated quenching systems
Key Components
-
Bogie Platform: Heavy-duty steel construction with refractory lining
-
Rail System: Precision-aligned tracks for smooth operation
-
Hydraulic Door: Counter-balanced lifting mechanism
-
Heating System: Multiple zone burner arrangement
-
Sealing System: High-temperature door seals
-
Control Panel: User-friendly PLC interface
Safety Features
-
Hydraulic door safety interlocks
-
Emergency stop systems
-
Over-temperature alarms
-
Bogie position sensors
-
Cooling system monitoring
-
Gas leak detection (for gas-fired units)
Customization Options
-
Chamber size and load capacity
-
Heating method selection
-
Atmosphere control systems
-
Quenching integration
-
Automation level
-
Material handling systems
Why Choose Continental Furnaces?
Continental Furnaces designs and manufactures bogie hearth furnaces with precision engineering, robust construction, and advanced control systems. Our ISO 9001:2015 and ISO 14001:2015 certifications ensure quality and environmental compliance.
