A furnace is not ready for production simply because its burners light or its control screen displays the setpoint. Commissioning must establish that utilities, mechanical systems, controls and safety interlocks work as intended. Performance acceptance must then show, under agreed operating conditions, that the furnace meets its contractual commitments for output, energy consumption, emissions and product quality.
For a steel rolling mill, a poorly controlled first heat can damage refractory and delay production. For heat treatment furnaces, an unverified temperature profile risks nonconforming product. In an aluminum melting furnace or metal recycling furnace, unstable operation can affect metal yield, energy use and emissions. A disciplined acceptance plan protects the equipment and gives plant owners and works managers a reliable operating baseline.
Commissioning and acceptance are separate gates
Commissioning confirms that the installation functions safely and correctly. Performance acceptance tests whether the operating system delivers the contracted results. These are connected, but they are not interchangeable: a successful commissioning checklist alone does not prove a production-rate or specific-energy guarantee.
Before the first heat, the plant team and equipment supplier should agree on:
- The furnace operating range, product or charge, loading pattern and target process recipe.
- Utility conditions, including fuel quality and pressure, electrical supply, cooling water and compressed air.
- The applicable safety, emissions and customer requirements.
- Test methods, measurement boundaries, acceptance limits, responsibilities and retest procedures.
- How deviations will be recorded, corrected and formally closed.
This is the point to distinguish standard compliance from commercial guarantees. For example, AMS2750G defines requirements for pyrometry in applicable thermal-processing operations; it does not by itself set a furnace’s contractual tonnes-per-hour or energy-per-tonne target.
Phase 1: Verify installation, utilities and safety
A thorough pre-start review catches problems before they become hot-work problems. Check the mechanical, electrical and process systems against approved drawings and the commissioning checklist.
Key checks include:
- Fuel-train integrity, pressure regulation, leak testing and burner-management logic.
- Purge sequences, flame supervision, emergency shutdowns and safety interlocks.
- Fans, dampers, exhaust paths, doors, seals, drives, rollers and material-handling equipment.
- Control panels, instruments, alarms, data logging, sensor wiring and loop responses.
- Atmosphere or vacuum equipment, where installed, and cooling or quench systems.
- Availability and calibration status of the meters and analyzers intended for acceptance testing.
Test interlocks and protective functions before introducing fuel or heat. Record each test, the result and any corrective action. A strong commissioning record is a practical safeguard against disputes and avoidable downtime.
Phase 2: Inspect refractory and control the first heat
Refractory and insulation need a controlled heat-up to manage thermal stress and remove moisture according to the lining design. A rapid, improvised warm-up can contribute to cracking, spalling or premature lining failure.
Use the refractory supplier’s specified dryout curve, not a generic heating rate. The plan should identify ramp rates, hold temperatures, hold durations, sensor locations and the person authorized to progress each stage. Monitor the specified points and document actual temperatures and time at each hold. If readings diverge from the approved profile, pause and investigate rather than pushing ahead.
For a reheating furnace, the initial heat should also verify burner balance, zone response and furnace pressure. For melting operations, confirm the equipment-specific startup sequence and the readiness of charge handling and safety systems before introducing material. First heat-up is a controlled engineering activity, not a production shortcut.
Phase 3: Complete pyrometry checks and temperature uniformity surveys
For operations governed by AMS2750G, facilities must ensure the required instruments are calibrated and the initial System Accuracy Test (SAT) and Temperature Uniformity Survey (TUS) are completed before first use. The plant remains responsible for meeting the applicable requirements, even when the furnace supplier supports setup or testing. Survey and SAT intervals depend on the relevant furnace class, instrumentation type and governing specification.
The AMS2750G furnace-class uniformity tolerances include:
| Furnace class | Temperature uniformity tolerance |
|---|---|
| Class 1 | ±5°F (±3°C) |
| Class 2 | ±10°F (±6°C) |
| Class 3 | ±15°F (±8°C) |
| Class 4 | ±20°F (±10°C) |
| Class 5 | ±25°F (±14°C) |
| Class 6 | ±50°F (±28°C) |
These are standard-defined tolerances, not a blanket recommendation for every process. The correct class and qualified operating range must be established for the application and customer requirements. Keep survey raw data, sensor positions, calibration records, results and corrective actions in a controlled file.
For heat treatment applications, review Continental Furnaces’ heat treatment furnace solutions alongside the process-specific qualification requirements.
Phase 4: Conduct trial production and verify guarantees
Once functional checks and required pyrometry tests are complete, proceed through controlled production trials. Start with a representative load and operating recipe, then increase to the agreed acceptance condition. Maintain the same product mix, loading pattern, setpoints and measurement approach during each run.
Define the acceptance metrics in the contract or approved test protocol:
- Production rate: good product output per hour, with rejects, rework and stoppages recorded.
- Specific energy consumption (SEC): energy input divided by accepted output, for example, GJ/t, kWh/t or fuel volume per tonne. State whether the boundary includes fuel only or fuel plus electricity.
- Temperature performance: uniformity, recipe tracking, soak conditions and product temperature, as relevant to the process.
- Emissions: specify pollutants, sampling location, analyzer calibration, averaging period and applicable permit limits.
- Product quality and yield: agreed metallurgical results, scale loss, melt recovery or other customer-defined measures.
A published SMS Group report on the Nucor Marion walking-beam furnace provides a real operating example: the furnace was reported at 120 short tons per hour and less than 1.04 MMBtu per short ton at 2,255°F (1,235°C). These figures describe that specific installation and are not universal benchmarks or promises for other furnaces. They illustrate why an acceptance test should state its operating conditions and measurement boundaries clearly.
Commissioning phases and acceptance evidence
| Phase | Scope | Evidence or acceptance criterion |
|---|---|---|
| Installation readiness | Utilities, mechanical completion, controls and safety | Signed checklists; interlocks and alarms tested |
| Refractory dryout | Supplier-approved staged heating | Logged ramps, holds and sensor readings |
| Pyrometry qualification | Calibration, SAT and TUS where applicable | Passing results under the governing specification |
| Trial production | Representative product and operating recipe | Stable operation; documented good output and quality |
| Performance acceptance | Rate, SEC, emissions and process results | Results meet contract-defined test conditions and guarantees |
| Handover and baseline | Records, procedures, training and open items | Signed dossier, deviation closure and baseline approval |
Phase 5: Establish a useful operating baseline
Commissioning should leave the plant with more than a pass/fail certificate. Record heat-up times, zone responses, setpoint deviations, fuel and electricity use, throughput, downtime, emissions and product-quality results. This baseline helps operations teams identify deterioration, compare future performance and target maintenance before small deviations become expensive failures.
A useful handover dossier includes:
- Approved drawings, zone maps, operating procedures and control recipes.
- Calibration certificates, SAT and TUS reports where required, and raw test data.
- Trial-load details, production logs, energy readings and emissions results.
- Safety-test records, training completion, punch-list status and corrective actions.
- Recommended inspection intervals and critical furnace spare parts for planned maintenance.
This documentation also supports energy-management work and wider Industry 4.0 initiatives: reliable, time-stamped operating data gives teams a sound basis for monitoring performance and improving efficiency. Energy protocols are evolving too. GB/T 21736-2025, a recommended Chinese national standard for energy-saving combustion-heating equipment used in heat treatment, took effect on March 1, 2026. Applicable standards and local regulations should be confirmed for each site and project.
Commissioning as an enduring partnership

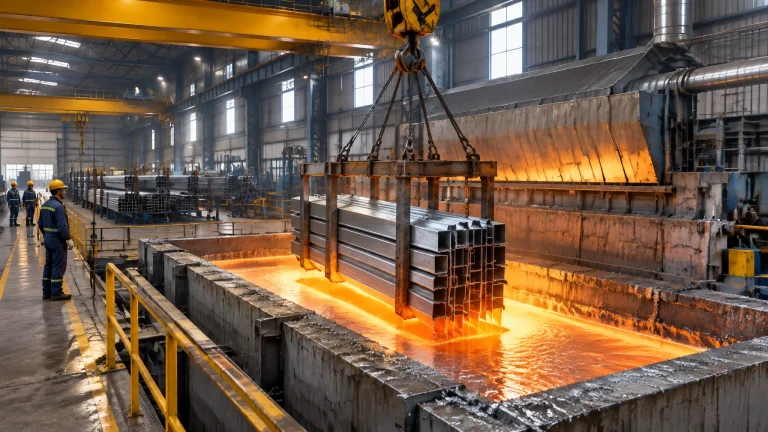

A well-defined acceptance plan is essential across thermal processing equipment, from a melting furnace for steel and a metal recycling furnace to a hot dip galvanizing plant serving the wire and cable industry. Each process has distinct operating conditions, but the core discipline remains the same: verify the installation, control the first heat, prove performance against agreed criteria and preserve a reliable baseline.
