In 2026, thermal process quality is no longer demonstrated by a furnace setpoint alone. Customers, auditors and regulators expect objective evidence that every critical temperature, atmosphere condition, calibration activity and production batch is controlled and traceable.
For manufacturers operating heat treatment furnaces, steel rolling mills, melting systems, hot dip galvanizing plants and wire-processing lines, compliance engineering has become a direct contributor to yield, profitability and customer confidence.
A modern quality system must answer five questions:
- Was the furnace temperature uniform throughout the qualified working zone?
- Was the control and recording system accurate?
- Were sensors and instruments calibrated at the required intervals?
- Was the atmosphere controlled and documented?
- Can every finished batch be traced to its furnace cycle, instruments, operators and release decision?
Continental Furnaces brings 35+ years of thermal engineering expertise to these requirements, combining customized equipment design with lifecycle support, furnace spares and audit-ready documentation.
Why Furnace Quality Assurance Is a Production KPI
Temperature variation creates more than an audit observation. It can produce:
- Inconsistent hardness, tensile strength or microstructure
- Scale, oxidation, decarburization or coating defects
- Rework and scrap
- Customer complaints and warranty exposure
- Delayed batch release
- Non-conformities during CQI-9, ISO 9001 or customer audits
For example, a steel rolling mill may achieve the correct nominal heating temperature while still having a working-zone spread of ±15°C. That variation can affect forming behaviour, surface quality and downstream mechanical properties.
In a galvanizing line, unstable pre-treatment temperature or furnace atmosphere can influence coating adhesion and appearance. In the wire and cable industry, inadequate annealing control can alter ductility and dimensional stability.
The objective is not simply to reach temperature. It is to prove repeatable process capability.
TUS, SAT and Calibration: The Three-Part Compliance Framework
1. Temperature Uniformity Survey, TUS
A TUS confirms that temperatures remain within the specified tolerance across the qualified work zone. The survey normally uses calibrated thermocouples positioned at defined locations throughout the furnace.
A robust TUS program includes:
- Furnace identification and qualified operating range
- Survey thermocouple identification and calibration status
- Sensor placement drawing or location map
- Setpoint and actual readings
- Stabilization period and recording duration
- Maximum, minimum and average temperature
- Calculated uniformity deviation
- Pass/fail decision and corrective action
Under AMS 2750 practice, an empty-furnace survey commonly includes a minimum 30-minute recording period after stabilization, although the applicable revision, furnace class and customer specification must control.
Typical reference bands include:
- ±1.1°C or ±0.4% of reading for tighter AMS furnace classes, whichever is greater
- ±2.2°C or ±0.75% of reading for less stringent classes, whichever is greater
- CQI-9 process tables may apply broader limits, such as ±10°C, depending on the process
These values are not interchangeable. The governing specification must be identified before the survey begins.
2. System Accuracy Test, SAT
A SAT compares the furnace measurement system with a calibrated field test instrument and test thermocouple. It verifies the combined accuracy of:
- Furnace controller
- Recording instrument
- Control thermocouple
- Wiring and connections
- Measurement location
- Field test equipment
A frequently applied CQI-9 benchmark is a maximum deviation of ±5°C between the furnace system and test system. If the result exceeds the applicable limit, the furnace must be placed under controlled disposition until corrective action and verification are complete.
SAT records should identify:
- Furnace and zone
- Test instrument serial number
- Test thermocouple number
- Calibration expiry date
- Furnace indication
- Test indication
- Calculated difference
- Disposition and approval
3. Pyrometry Calibration
Calibration is the foundation of credible TUS and SAT results. A calibration certificate without equipment identification, range, uncertainty and traceability is not audit-ready evidence.
A 2026 pyrometry program should control:
- Control and recording instruments
- TUS thermocouples
- SAT thermocouples
- Load thermocouples
- Infrared pyrometers
- Atmosphere sensors and analysers
- Quench-temperature instrumentation
- Field test instruments
Planning intervals often range from monthly to quarterly for high-criticality instrumentation and six to twelve months for less critical equipment. AMS 2750H introduces tighter expectations for calibration points across the used temperature range, with calibration points commonly planned at intervals of approximately 140°C or less.
The exact frequency depends on furnace class, instrument type, thermocouple type and customer requirements. The controlled standard, not a generic maintenance calendar, must determine the interval.
Traditional Versus Modern Quality and Compliance Approach
The following table provides illustrative project benchmarks for improvement planning. They are not universal acceptance criteria; the applicable AMS, CQI-9, ASTM, customer or product specification always takes precedence.
| Quality and compliance measure | Traditional approach | Modern compliance-engineered approach | Improvement target |
|---|---|---|---|
| Working-zone uniformity | ±10°C to ±25°C, inconsistently verified | ±1.1°C to ±5°C where specification requires | Defined qualified zone |
| TUS frequency | Annual or reactive | Per AMS/CQI class, plus after repair or modification | 100% scheduled surveys completed |
| Instrument calibration | 6–12 months, spreadsheet-based | 1–3 months for critical instruments with automated alerts | Zero overdue critical calibrations |
| SAT documentation | Paper forms with limited traceability | Digital or controlled records linked to furnace and batch | >95% record completeness |
| Audit findings | 5–12 observations per assessment | 0–3 minor observations in a mature system | Lower corrective-action workload |
| Heat-treatment rejection | 2–5% planning baseline | 0.5–1.5% target after process stabilization | Higher yield |
| Compliance improvement payback | Difficult to quantify | Common project target: 6–18 months | Reduced rework and faster release |
For a steel rolling mill, the return comes from reducing non-conforming lots and proving furnace capability to customers. For an aluminum melting furnace or melting furnace for steel, traceable temperature and composition records protect melt quality and reduce avoidable charge losses.
Atmosphere Control and Traceability Across Industrial Furnace Systems
Temperature control cannot be separated from atmosphere control. Depending on the process, a quality system may need to record:
- Oxygen potential
- Carbon potential
- Dew point
- Hydrogen or nitrogen flow
- Furnace pressure
- Gas flow rates
- Burner and combustion status
- Quench medium temperature
- Zinc bath temperature and chemistry
A hot dip galvanizing plant should link furnace and bath records to coil, strip, wire or component identification. A metal recycling furnace should link each melt to charge composition, sampling results and tapping records.
For every production lot, the traceability chain should include:
- Material heat, coil, billet, wire coil or charge identification
- Furnace and line identification
- Recipe or process specification
- Actual temperature-time record
- Atmosphere and quench data, where applicable
- TUS, SAT and calibration status
- Operator and quality approval
- Final inspection and release authorization
This is the practical meaning of ISO 9001 measurement traceability: records must demonstrate that equipment was fit for purpose and that released product met defined acceptance criteria.
The 2026 Readiness Roadmap
Phase 1: Assessment and Planning
Create a furnace-by-furnace compliance matrix covering:
- Applicable standard and revision
- Furnace class and process table
- TUS and SAT frequency
- Calibration intervals
- Atmosphere requirements
- Record-retention period
- Customer-specific requirements
Phase 2: Measurement-System Verification
Confirm that every instrument has:
- Unique identification
- Current calibration certificate
- Defined range and accuracy
- Traceability to national or international standards
- Controlled status label
- Escalation procedure for overdue calibration
Phase 3: Survey and Corrective Action
Perform TUS and SAT using qualified personnel. Investigate deviations through structured root-cause analysis, including:
- Damaged thermocouples
- Loose terminals or degraded wiring
- Burner imbalance
- Insulation damage
- Door leakage
- Fan or circulation problems
- Incorrect sensor placement
- Recorder or controller drift
Where replacement is required, maintain ready access to approved furnace spare parts, thermocouples, heating elements, burners, seals and instrumentation components.
Phase 4: Digital Traceability and Audit Simulation
A modern quality system should allow an auditor to retrieve a complete batch record within minutes. Conduct mock audits using questions such as:
- Which TUS qualified this furnace?
- Was the SAT valid on the production date?
- Which calibration certificate covers the control thermocouple?
- What was the furnace atmosphere during the cycle?
- Who authorized product release?
Continental Furnaces: Compliance Engineered for Lifecycle Value
Continental Furnaces designs and supports customized thermal processing equipment for heat treatment, melting, recycling, galvanizing and metal-processing applications.
Explore relevant solutions:
- Heat Treatment Furnaces

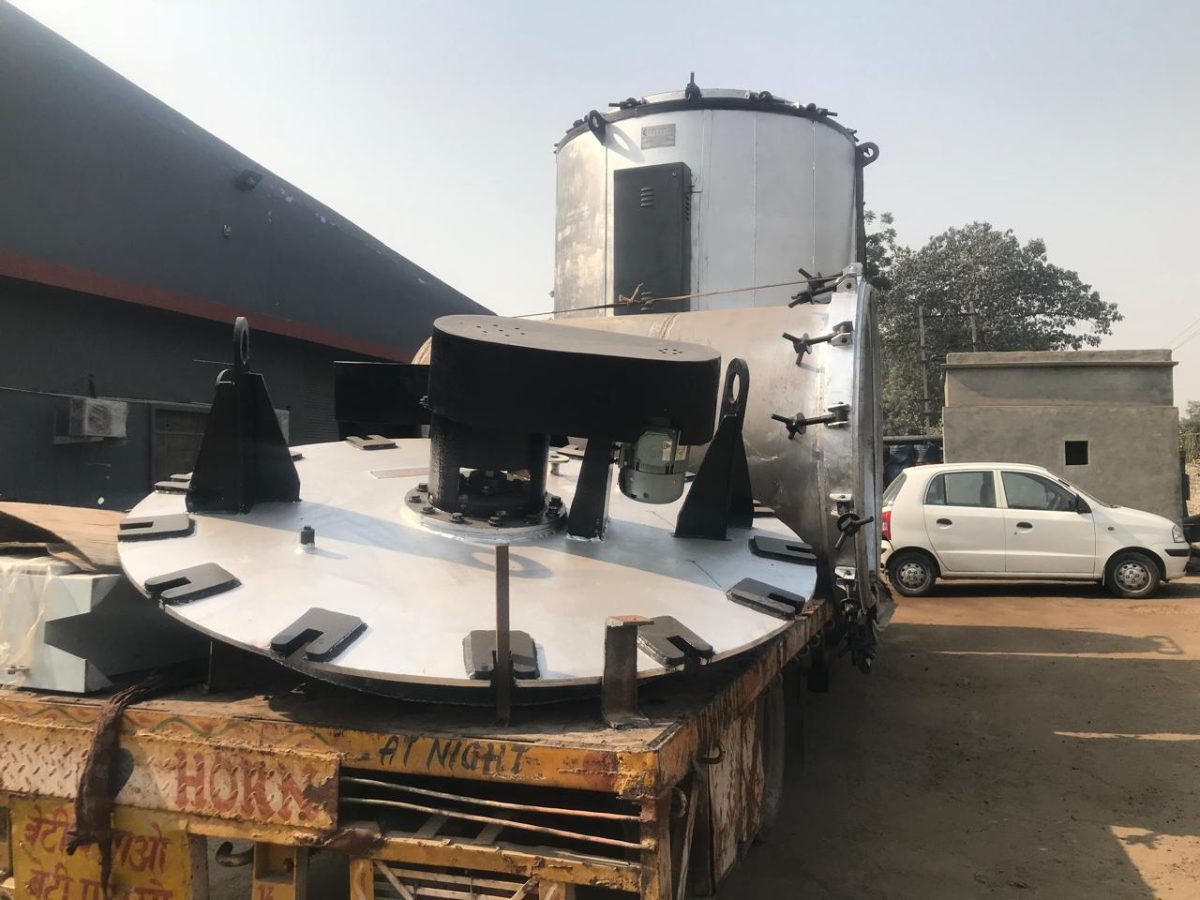

- Pit Type Annealing Furnace
- Hot Dip Galvanizing Plant
- Melting Furnaces and Recycling Projects
- Furnace Spares and Accessories
- Pickling Plant
Our role extends beyond equipment supply. We support customers with application engineering, quality documentation, commissioning assistance, spares planning and responsive technical service designed to keep downtime minimal.
External Standards and Reference Sources
- SAE AMS2750H, Pyrometry
- AIAG CQI-9: Heat Treat System Assessment
- ASTM A991/A991M: Temperature Uniformity Surveys for Steel Products
- ISO 9001 Auditing Practices Group: Monitoring and Measuring Resources
Make Quality Capability Your Competitive Advantage
Temperature uniformity, pyrometry calibration and traceability are essential production controls, not paperwork exercises. Plants that establish a disciplined compliance architecture reduce rejection risk, accelerate customer approvals and create measurable lifecycle value from their industrial furnace systems.
